TRACKbox TB-SA4

The TRACKbox TB-SA4 is a Sigfox Tracking device. It can easily be mounted on non-powered equipment using screws or a cable tie.

Typical applications are:

  • Rental Cars, Car Yard Stock
  • Industrial Equipment (Diggers/Cranes/Scissor lifts/generators etc),
  • Shipping Containers,
  • Mobile Signs/Digital Signs/Mobile Lighting,
  • Portable Buildings/Porta-Loos, Skip Bins etc,
  • Trailers/Trailer Boats
  • Bee Hives
  • Motor Homes/Caravans

By default, location is updated twice per day, or every 10 minutes when in motion. This is configurable to suit your requirements.



Usage Specifications

  • Heartbeat - 15 minutes/30 minutes/1 hour/2 hours/4 hours/6 hours/12 hours/24 hours
  • In Motion Poll - 0 to 255 minutes (includes journey start/stop)
  • Temperature Variation - none/1 degree/2 degrees/4 degrees
  • Lock Orientation (tip over) - on/off
  • Two stage push button - short press/long press
  • Downlink rate - none/6 hours/12 hours/ 24 hours

 I/O configuration

  1. - USB (Power & Communication)
  2. - Digital Input
  3. - Battery in (3.7v)

Specifications

Sigfox Zone 4

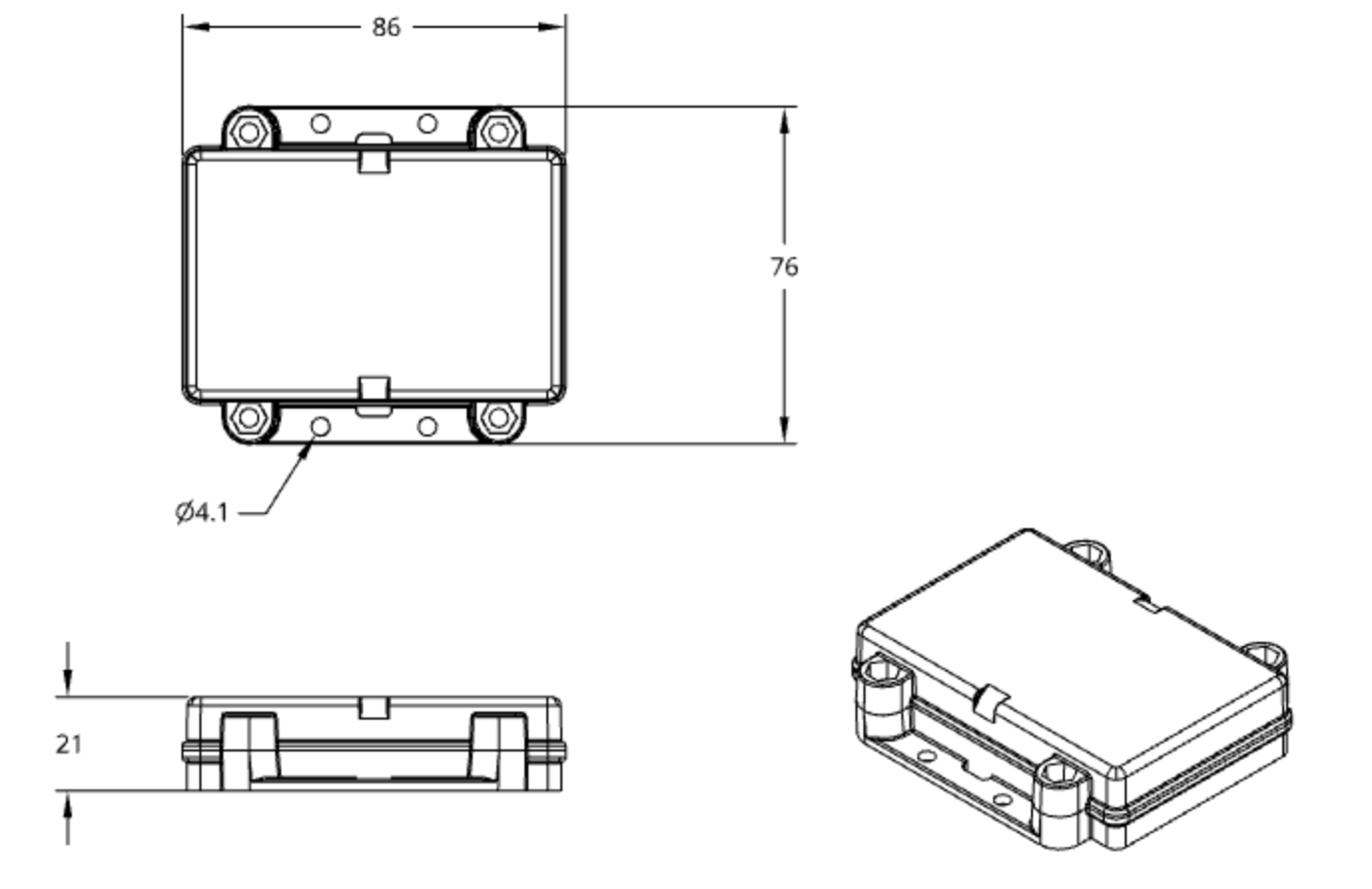

86mm x 76mm x 25mm

114 grams

See specifications

7,800mAh 3.7v

IP 67

Internal

GPS/QZSS/GLO/Galileo

Internal

Network

Size

Weight

Tracking Resolution

Battery

IP Rated

GNSS Antenna

GNSS Antenna Type

Sigfox Antenna





Specification are subject to change. Please discuss your requirement prior to purchasing.
